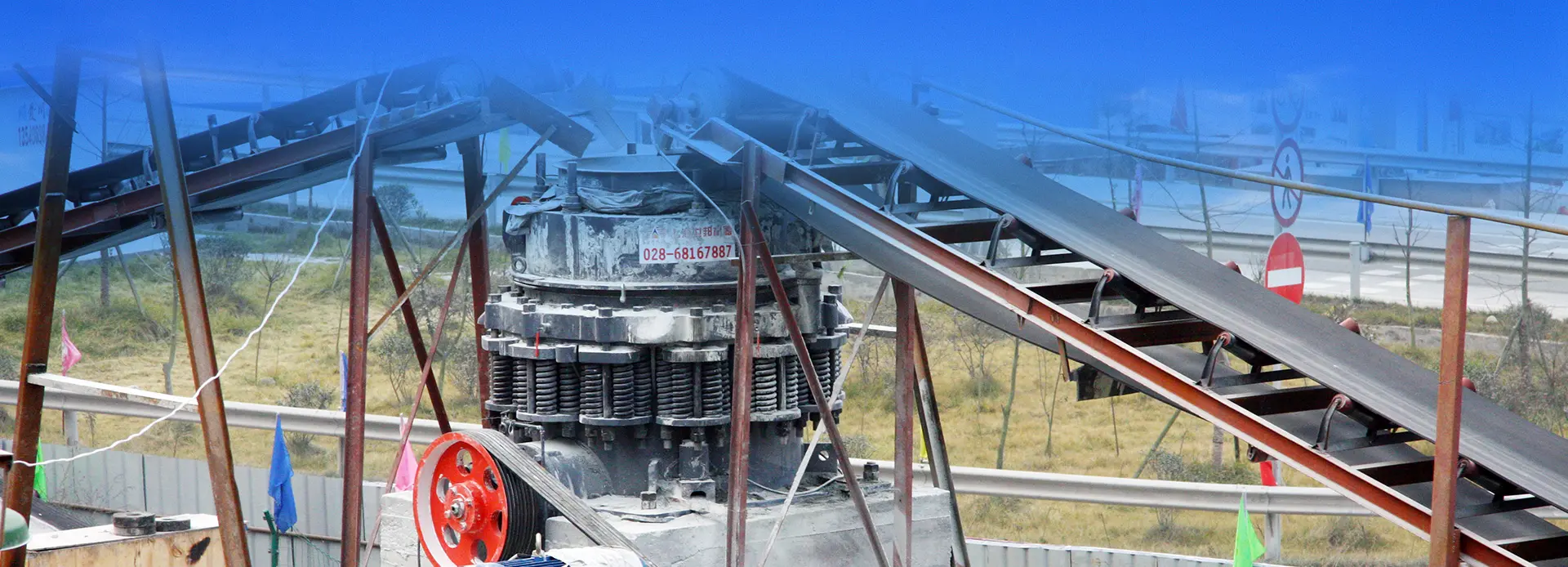

The CS series high-efficiency spring cone crushers are manufactured based on the domestically most advanced spring cone crusher technology, and after years’ use and optimization, such crushers have shown stable performance, so they can be earliest and widely used at home and abroad.
Factory Price If you want to know how to choose or design the cone crusher, please contact us, we will give our most professional suggestions or design.
Each type CS cone crusher is equipped with multiple cavities, making it suitable for both intermediate and fine crushing of materials with varying levels of rigidity.

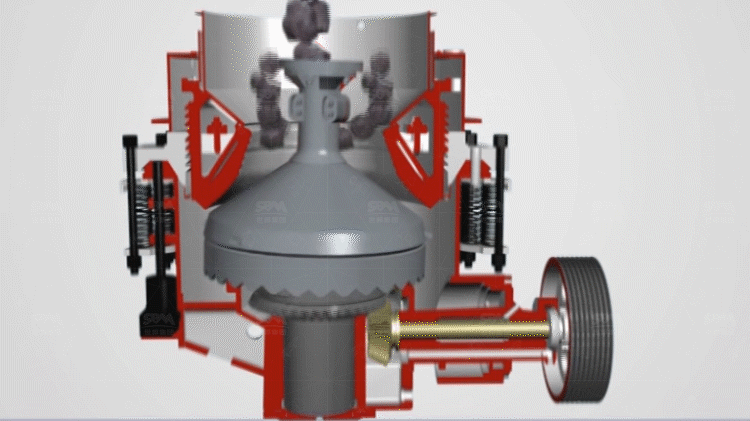

The CS Spring Cone Crusher adopts the lamination crushing principle, enabling it to produce high-quality finished products (cubic shape with a high content of fine particles), which fully meets market demands.
The CS spring cone crusher maintains its classic structure and is adaptable to various operational environments, ensuring enhanced reliability and stability.
The CS spring cone crusher is equipped with a hydraulic lubrication system, allowing users to easily adjust the discharge opening and clean the crushing cavity.
| Model | Cavity | Max. Feeding (mm) | Power (kW) | Capacity (t/h) | |
|---|---|---|---|---|---|
| Closed Side (mm) | Opening Side (mm) | ||||
| CS75B | fine | 83 | 102 | 75 | 45-91 |
| coarse | 159 | 175 | 59-163 | ||
| CS75D | fine | 13 | 41 | 75 | 27-90 |
| medium | 33 | 60 | 27-100 | ||
| coarse | 51 | 76 | 65-140 | ||
| CS160B | fine | 109 | 137 | 185 | 109-181 |
| medium | 188 | 210 | 132-253 | ||
| coarse | 216 | 241 | 172-349 | ||
| CS160D | fine | 29 | 64 | 160 | 36-163 |
| medium | 54 | 89 | 82-163 | ||
| coarse | 70 | 105 | 109-227 | ||
| CS240B | fine | 188 | 209 | 240 | 181-327 |
| medium | 213 | 241 | 258-417 | ||
| coarse | 241 | 268 | 299-635 | ||
| CS240D | fine | 35 | 70 | 240 | 90-209 |
| medium | 54 | 89 | 136-281 | ||
| coarse | 98 | 133 | 190-336 | ||
| CS400B | fine | 253 | 278 | 400 | 381-726 |
| medium | 303 | 334 | 608-998 | ||
| coarse | 334 | 369 | 870-1400 | ||
| CS400D | fine | 51 | 105 | 400 | 190-408 |
| medium | 95 | 133 | 354-508 | ||
| coarse | 127 | 178 | 454-599 | ||
